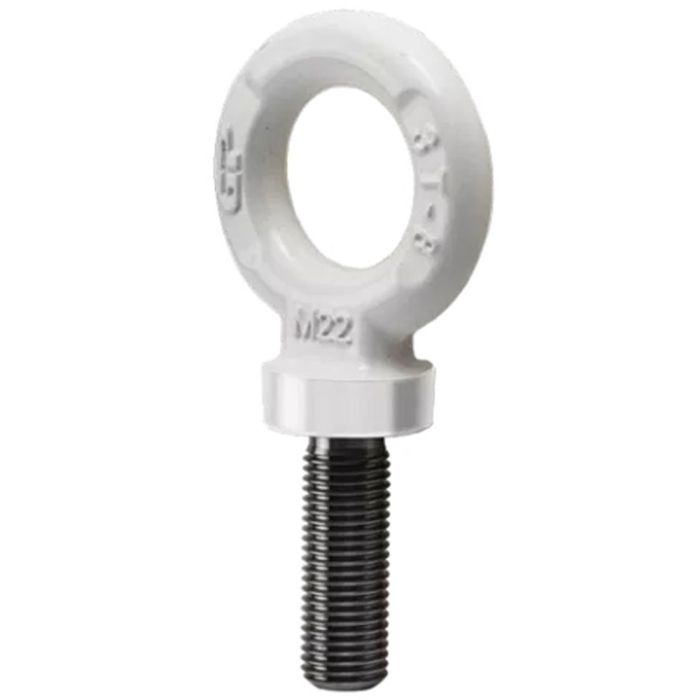

The Green Pin® Lifting Eye is a grade 8 lifting eye. Its extensive range of alloy steel lifting eyes incorporates 22 different ISO metric threads as standard. The WLL for lifting points are valid for in-line lifting only, but can be side loaded with reduction of the WLL. The longer thread length of the AL makes a through-hole mounting with a nut and washer on the other side possible. The nut on the bolt should at least be class 8, but class 10 or 12 is recommended. The thread length of the lifting eye should be adapted to the material of the load.
- Shank Diameter/Thread: M45 x 4.5
- Thread Length: 135mm
- Eye Diameter: 80mm
- Working Load Limit (WLL): 15 tons (33,000 lbs)
- Material: Grade 8 Alloy Steel (quenched and tempered)
- Finish: Painted
- Design Factor 5:1
- Imported
