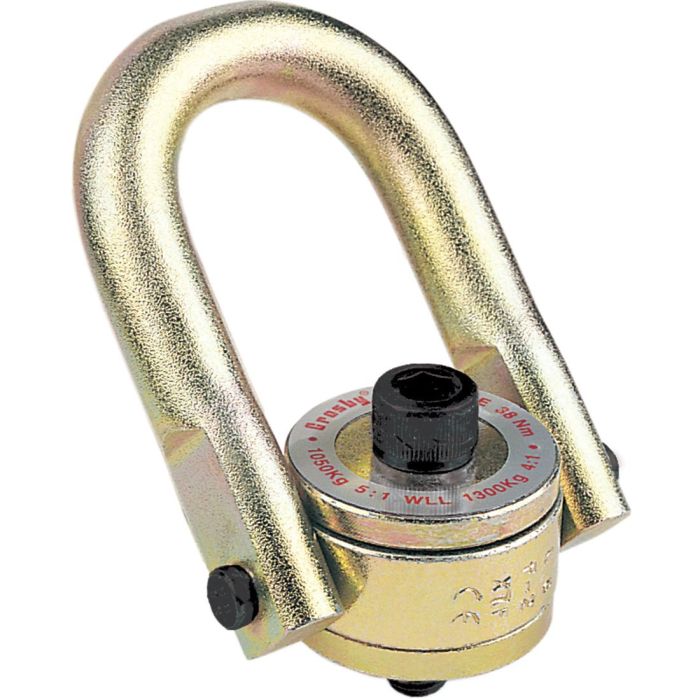

Crosby HR-125 Swivel Hoist Ring top washers have the following features: The Working Load Limit and Recommended Torque value are permanently stamped into each washer. Washer is color coded for easy identification: Red = UNC thread.
Features:
- 360 degree swivel and 180 degree pivot action
- Frame 2 and larger are RFID EQUIPPED
- Long bolt is designed to be used with soft metals and ferrous work pieces
- Bolt Specification is an Alloy socket head cap screw to ASTM A574
- Individually Proof Tested to 2-1/2 times Working Load Limit
Specifications:
- Bolt Diameter/Thread: 5/8″-11
- Effective Thread Projection Length: 1.45″
- Finish: Zinc Plated
- Material: Alloy Steel – Quenched and Tempered
- Bolt Torque Requirement: 60 ft-lbs
- Working Load Limit: 4000 lbs
- Design Factor 5:1
- USA
